STEAM ENGINE PARTS
Steam Engine Photo Gallery

STEAM ENGINE PARTS DIAGRAMS
HO Hudson

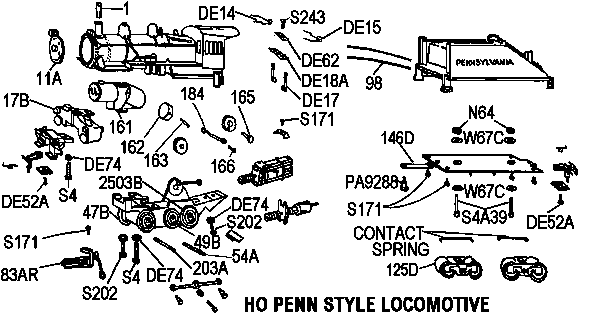

HO Penn
Include engine numbers when ordering.
*CORE CHARGE: The $20.99 Core charge is added
to all items listed w/trade or exchange, when a
trade or exchange is not sent.
Some items are sold only with a trade in.
Armatures or fields for trade-in or rewinding,
should be mailed to POB 562, Oyster Bay, NY 11771
Trade-ins must be sent in advance.
Items listed as replacement are functionally
similar to the original part. S.I.T. = Smoke in Tender
Screws listed on parts diagrams not listed
here, are listed on the Hardware page.

OPERATING INSTRUCTIONS $5.99 ea.
These are the sheets that where originally packed
with new AMERICAN FLYER equipment.
They explain hookup and operation.

M2176           HO Locomotive
M2560           HO-151 Locomotive

PARTS VIEWS
M2881           151 HO
M1772           443 HO
 M1772-2      446 HO update
 M1772-3      31005 HO update
 M1772-4      31006 HO update
M2880           155 HO
M1762           433 HO
 M1762-2      31004, 31019  HO update
 M1762-3      31031 HO update
 M1762-4      31036 HO update

PLEASE ORDER BY OUR PART NUMBER
SMOKE FLUID
Just like the original!!!!!
This is the original formula AMERICAN FLYER
smoke fluid. It's the best fluid you can use in all
liquid smoke units as it won't clog the wick.
Big 2 oz. bottle produces rich smoke in seconds.
With the CEDAR AROMA that brings back
memories. Don't be fooled by imitation fluids,
that claim to be "similar".

1115  SMOKE FLUID - 2 oz.                  $13.99

K2514 SMOKE KIT - Kit contains Funnel,
       Stack Cleaner plus Instructions      10.99
 RFG #    AF #      DESCRIPTION            PRICE
SMOKE UNIT PARTS
for BOILER & S.I.T.smoke units
All complete Smoke Units are with trade in.
*$20.99 core charge if no trade in.
Trade in must be sent before order is processed.
 K61D Wick w/wire coil kit for Smoke in Tender &
 Boiler Units. Contains wick and wire coil, plus
 instructions for replacing only the wick and
                             coil assembly. 12.99

 61B    Wick for all smoke units  PER FT.    7.99
 61C    Wire for all smoke units  PER FT.    7.99
SMOKE in BOILER Parts
 K161A Smoke unit element & plate
                      for XA13B445C engines 17.99
 1A     PA10536 Smoke Stack-metal S & HO     4.99
 1B     P10174 Smoke Stack-metal - HO Hudson 4.99
 161    XA13B445C Smoke Unit-rebuilt
                         w/trade only       48.99
 162    P10053 Piston                       15.99
 163    P10057 Pin                           2.99
 165    PA15021 Stud - gear to chassis      10.99
 166    P10045 Stud - piston rod to gear    10.99
 167    PA15A584 Piston lever
                  - Franklin,Washington     10.99
 184    P10052 Piston rod HO 0-6-0           8.50
 S13    4-40x11/16 Round head              4/3.99

SMOKE IN TENDER PARTS
 2530F  XA10724-A Complete Bellows assembly 48.99
 2530A  PA10167 Bottom Gasket for smoke box  2.50
 2530B  Top Gasket for smoke box             9.99
 2530C  PA10184 Heat Element top Plate/only 18.99
 2530D  XA10184 Heat Element Plate
                       complete w/coil      25.99
 2530E  Insulator for wick                   9.99
 2531   PA10185 Motor Brush                2/2.50
 2532   PA10194 Top Filler Screw             9.95
 2532A  PA10326 Fuel Nozzle - K5 & HO        9.95
 2533KIT All parts for SIT conversion from
         bellows to cylinder + Instructions 39.95
 2533A  PA10771 Piston Lever                 8.95
 2534   PA10195 Rubber Smoke Hose 12"       10.95
 2535   PA10475 Brush Bracket
                 -plastic bracket only      18.99
 2535A  XA10475 Brush Bracket
                   w/bearing & springs      28.99
 2535C  Brush Bracket early for
                  thin field-bracket only-  18.99
 2535D  Brush Bracket early -
                  w/bearing & springs       28.99
 2535B  Brush bracket bearing               15.99
 2537   Brush spring-w/eyelet                9.99
 2530KIT Bellows Unit Repair Kit-
               Bellows, Glue + Instructions 13.99
 1610    Smoke in Tender Bellows Tool       35.99

THE R.F. GIARDINA, CO.

 K2530D Kit containing all parts and instruction
 to rebuild smoke in tender smoke box.      30.50
 K2530  Complete Smoke In Tender Overhaul Kit-
        Contains all parts to replace bellows
        plus parts to rebuild smoke box, also
        contain motor service parts, cleaning
        fluid, applicator and instructions. 38.99
2536 XA10175 Armature-rewind w/trade............................. 50.99
2542 XA10461 Field 12 plates -rewind w/trade................. 25.99
2542A Field early thin 10 plates -rewind w/trade............... 25.99
2541 XA10149A Smoke Box with trade only........................ 25.99
 2543   Smoke Unit base                     28.99
 2544   PA10194 Fuel Stud front of smoke box 9.95
 S249   #2x1/4 Flat head                   4/3.99
 S233   4-40x1/4 Flat head                 4/3.99

BOILER TRIM -new manufacture
 2505   P9395 Boiler Bell                    7.99
 2508   Green Jewels for marker lamps      4/3.99
 2509   Boiler & Tender Hand Rail
                               wire - 2 ft.  3.99
 2511  P9219 Hair Cotter Pin for hand rail   3.99
BOILER FRONTS
 10A    P10176 Boiler Front HO Hudson       19.99
 11A    P10025 Boiler Front HO 0-6-0        11.95
 13B    P9160 Headlight Lens for HO Hudson   5.99
CYLINDER & STEAM CHESTS -original
 16B    P10171 Cylinder
                   -steam chest HO Hudson   18.99
 17B    P10023 Cylinder
                   -steam chest HO 0-6-0    18.99
 S0     4-40x3/16 Round head               4/3.99
 S4     4-40x1/2 Screw                     4/3.99
 DE74   W46 Lock Washer                    4/3.99
ENGINE WHEELS - AXLES-original-TIRES -new manufacture
 37B    X9459 Flanged Wheel HO Pre war      20.50
 47B    X13A980 Flanged Wheel HO
                              5 digit 0-6-0 15.50
 49B    X13A981 Flangeless Wheel HO
                              5 digit 0-6-0 15.50
 54A    P9462 Gear axle HO                   6.50
 P10064 Metal Gear                          24.99
 P10064A Nylon Gear                         19.99
 203A   P9463 Axle HO                        6.50
 P9251  Lead Truck Screw HO Hudson           4.99
PULL-MOR TIRES
The following tires are for engines that were
 originally equipped with replaceable tires on
 5 digit engines only.
 2503B  Pull-Mor Tire (HO 0-6-0)           2/7.50
 2503C  Pull-Mor Tire (HO Hudson)          2/7.50
JACK PANELS
 92B    XA10335 2 wire jack panel
                           - 350 etc. & HO  14.99
 S230-B #4x1/4 Pan head                    4/3.99
 93A    PA10291 Male plug - early          2/1.99
 98     PA10249 Wire lead 1 ft.              1.99
MOTOR PARTS ARMATURES
-original rewind w/trade in, w/good commutator.
 *$20.99 core charge if no trade in.
 Those listed w/trade only, must supply trade in.
 Trade in must be sent before
 order can be processed.

 KDE17 MOTOR TUNE-UP KIT - 151,155,433,443
       Kit contains
       2 Brush & Holder (DE17B, XA11684)
       2 Springs (DE14 P11000-L,DE15 P11000-R)
       Cleaner, Applicator & Instructions   29.99
56F X0460 Armature Pre war HO/ w/trade only................... 50.99
 201    PA10766 Armature spacer washer     2/1.99
BRUSH BRACKETS -original-other parts new manufacture
 57C    X9351 Brush Tube Bracket HO Pre war 25.99
BRUSHES
 58B    P313A Round Brush Pre war HO       2/4.99
MOTOR SPRING
 DE62   P10118 Spring Holder-151,155,433,443 2.50
 DE18A  P10119 Fiber strip-151,155,433,443   3.25
 DE18C  P13A062-ARP-2 Late HO Fiber Strip    5.99
 176    PA13A130 Brush Spring for use with #175
        brushes                + HO pre war 2/.70
 S243   2-56x1/4 PH thead cutting screw    4/3.99
FIELDS -original rewind w/trade in only.
Trade in must be sent before order can be processed.
70C X9477 DC Magnet early HO........................................... 50.99
 70D Magnet HO AC version.................................................... 50.99
REVERSE UNITS complete units w/repairable trade in only.
Trade in must be sent before order can be processed.
99E Remote control HO (AC version).................................... 65.99
 102A   XA9612C Top Finger- "O" & "HO"       2.99
 103    XA9612BRP Bottom finger-"S","O","HO" 1.75
 104    XA8716 Drum                         15.99
Reverse Unit Service Kit
Kit to replace worn reverse unit fingers
and clean units. Kit contains new upper and
lower fingers, cleaning solution, applicator
and instructions.
K102A Reverse Unit Service Kit HO            8.99

TENDER PARTS
 TENDER CHASSIS
 112HO  Tender Chassis HO Hudson            20.99
 113HO  Tender Chassis HO (0-6-0)           20.99
 S171   Tender Screw (All)                 4/3.99
TENDER TRUCKS -original-without wheels
 120B   X9342C Front truck HO Hudson        20.99
TENDER CONTACT SPRING -TRUCK RIVETS
 122    PA10207 Contact spring    HO 151     6.99
 122A   P13A117 Contact spring HO 0-6-0/433  6.99
 122B   P10284 Contact spring HO 0-6-0/155   6.99
 W64    W64 Nut for HO 0-6-0               4/3.99
 W6A    W6A Fiber Washer HO Hudson         4/3.99
 W6B    W6B Fiber truck washer             4/3.99
 W67C   W67C Fiber Washer                  4/3.99
 W77    W77 Metal Washer                   4/3.99
 123A   Contact spring HO Hudson 5318        2.50
 132    PA1405 Washer to hold
                         contact spring    4/3.99
ENGINE TO TENDER COUPLER STRAP
 146C   P9847 Coupler Strap 5 digit HO Hudson5.99
 146E   P9300-A Coupler Strap 151, 443, 446  9.99
 146D   Coupler Strap HO 0-6-0               9.99
 P9245  Draw Bar Screw HO Hudson 151         3.99
 S0     4-40x3/16 Round head               4/3.99
TENDER WHEELSfor tender-front trucks etc
 125D   P13A916 Plastic wheel/HO tender    4/4.99
HORN PARTS
 K149   HORN KIT Capacitor and Resistor with
        wiring instructions.                13.99
 148    XA14A127 Speaker - replacement      10.99
 N1     Nut                                4/3.99

HAND RAILS
R= right side L= left side/ looking from the
rear to the front of the engine
GILBERT HO HUDSON

 25443AR Main Boiler Hand Rail            1.75 ea
 25443AL Main Boiler Hand Rail            1.75 ea
0-6-0 SWITCHER

 25433A Main Boiler Hand Rail             2.50 ea
 25433B Tender Hand Rail- front           1.75 ea
 25433C Tender Hand Rail- rear top        1.75 ea

DIESEL PARTS

Diesel Photo Gallery
PARTS VIEW LISTING
F7 PARTS VIEW

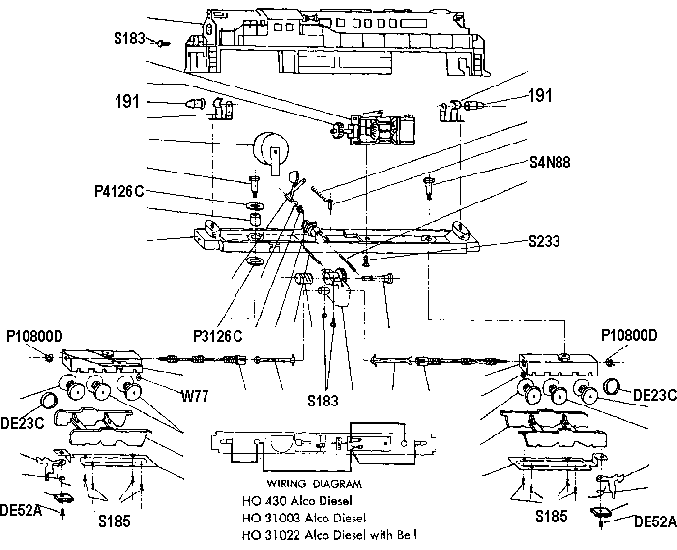

ALCO PARTS VIEW
INDUSTRIAL SWITCHER PARTS VIEW

PARTS VIEWS $5.99 ea.

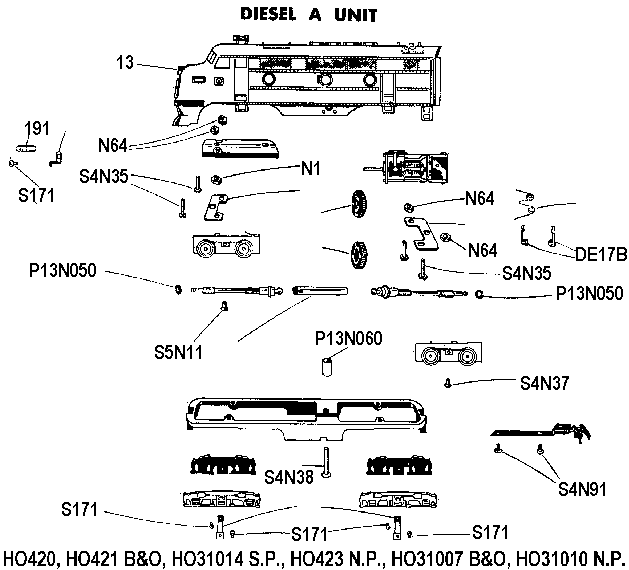

M1761           420 HO

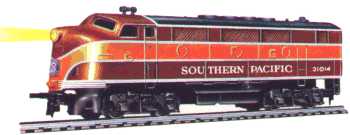

 M1761-2       421,31014,423 HO update
 M1761-3       425,31008,31011 HO update
M1985           430 HO
 M1985-1       31003 HO update

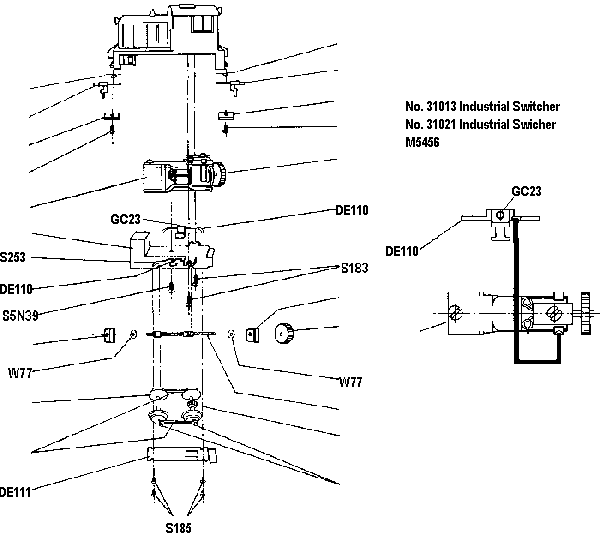

M5456           31013,31021 HO

 RFG #   AF #    DESCRIPTION               PRICE

 KDE17 MOTOR TUNE-UP KIT
       Kit contains
       2 Brush & Holder (DE17B, XA11684)
       2 Springs (DE14 P11000-L,DE15 P11000-R)
       Cleaner, Applicator & Instructions   28.99

 DE17   P10132 Brush Holder - only         2/2.99
 DE18A  P10119 Fiber strip                   3.25
 DE18C  P13A062-ARP-2 Late HO Fiber Strip    5.99
  PULL-MOR TIRES
 DE23C  P14A670Pull-Mor Tire HO
                   - replaceable band      2/2.50

 DE24C  X14A757 Gear Box HO F9              20.99
 DE52A  P13N147 Eyelet  for coupler HO     2/1.99
 DE86A  X14N475 Bottom Plate &
                            coupler HO F9    4.50
 S185   Screw                              4/3.99
 S253   Screw                              2/1.99
 GC23   Eyelet                             4/3.99
 DE110  P13A860-A Contact Spring          2/20.99
 DE111  P14A650 Bottom Plate                20.99
 DE112  P14A635 Axle                        10.99
 S183   Screw                              4/3.99
 W77    Washer                             4/3.99

ACCESSORY PARTS

STATIONS HO 258


 All window KITS come with Glue and Instructions.
 K2019HOY KIT HO Mystic Station- Yellow      13.99
 K2019HOG KIT HO Mystic Station- Green       13.99

 1131     WINDOW ADHESIVE                   10.99
 2141DHO  Base for HO 258 -S.O.             55.99
 432      AF#444 12v screw base bulb-clear 2/2.50
COAL LOADERS HO 35780


1112      Coal                               2.99
2028B     Coal Tray - HO 35785               8.99
24505780  Control Button -
                       35780 HO Coal Loader 14.95
M24505780 35780 HO Coal Loader Button Wiring 1.99
M4928     35780 HO Coal Loader operating inst5.99
M4927     35785 Coal Unloader                5.99
WATER TANK 35206 OIL STORAGE DEPOT 35213

510 RED BULB w/leads                         5.99
DINER PARADISE 253


 2048A    Sign Paradise  w/bracket           3.50
 2050A    Antenna Paradise                  15.99
 All window KITS come with Glue and Instructions.
 K2391    KIT - w/yellow shade clear         13.99
 K2391A   KIT - w/yellow shade frosted       13.99

 1131     WINDOW ADHESIVE                    10.99
 2049AHO  Paradise Diner Base -S.O.         75.99
 432      AF#444 12v screw base bulb-clear 2/2.50
OIL DRUM CONVEYER HO 35759

 2375A    Oil Drum for HO 35759            2/6.99
 2356     Chimney for 35759                  1.75
 2450759  Control Button - 35759            14.95
 M2450759 Control Button Wiring instructions 1.99
 MW35759  Internal Wire instructions         2.99
PIGGY BACK UNLOADER HO 35790


 2069   Lift Rod                             3.99
 2070   Lift Ramp- long                     12.95
 2071   Rear Ramp- short                    12.95
 2306A  Holder/ Piggy Back vans/ Rocket Sled 3.50
 2306B  Rear Rubber wheel/r Piggy Back van 4/5.99
 2306E  Front Rubber wheel/ Piggy Back van 2/2.50
 2306BA Rear Axle for Piggy Back van       2/2.99
 2306BB Front Axle for Piggy Back van        1.99
 2158   MONON Piggy Back Van-complete "S"   28.99

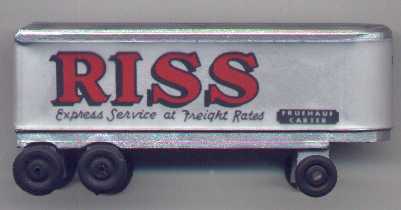

 2158HO Piggy Back Van-complete RISS HO     28.99
 2158BC Baker's Chocolate Van               28.99
 2158C1 Circus Yellow Van                   28.99
 2158C3 Circus Black Van                    28.99

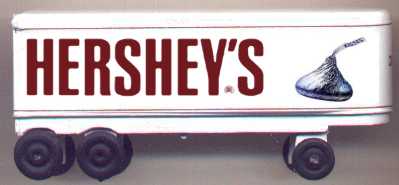

 2158HC HERSHY CHOCOLATE Van                28.99

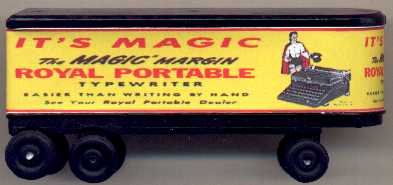

 2158R  ROYAL TYPEWRITER Van                28.99

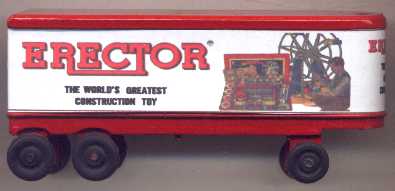

 2158E  Erector Van                         28.99

 ST31A  Sticker for Baker's Chocolate Van    13.99
 ST31B  Sticker for Circus Van               13.99
 ST31   Sticker for Monon Piggy Back Van     13.99
 ST42   Sticker for Riss Piggy Back Van      13.99
 2158A  Piggy Back Van shell only            8.99
 2158(X)Piggy Back Van Painted-W,R,G,GR,Y,S  8.99
WHISTLING BILLBOARDS

 2450W2 Control Button- "2 IN 1 WHISTLE"    24.95
 2450WD Control Button- "DIESEL HORN"       14.95
 2450W  Control Button- "WHISTLE"           14.95
 94     Rubber Grommet                     2/1.99
 M2450W2 2 in 1 Whistle button wiring        1.99
 MW762  762 2 in 1 Whistle internal wiring   2.99
 M2688  762 2 in 1 Whistle operating inst.   5.99
 MW577  577 Whistle internal wiring          2.99
 M2444  577 Whistle parts view               5.99
 M1644  561 Billboard Horn parts view        5.99
 M1644-1 23561 Billboard update part list    5.99
 432    AF#444 12v screw base bulb-clear   2/2.50
BILLBOARD SIGNS See Illustrations
Stickers and inserts for AMERICAN FLYER
Billboard Steam and Diesel Horns.
 2460   Circus - sticker                     6.99
 2460A  Circus - insert                      5.99
 2461   Erector - sticker                    6.99
 2461A  Erector - insert                     5.99
 2462A  Alco - insert                        5.99
 2463   Alco & Steam -  sticker              6.99
 2464A  Royal Typewriter-insert              5.99
 2465A  Challenger - insert                  5.99
 2466   Steam - sticker                      6.99
 2467   Foxmart - insert                     5.99
CONTROL BUTTON PARTS
 2450SB Case single button- unstamped       10.99
 2450DB Case 2 button- unstamped            10.99
 2450TB Case 3 button- unstamped            15.99
 2450TL Case 3 button / locking / unstamped 17.99
 2450DL Case 2 button / locking / unstamped 12.99
 2450R  Button - Red                         2.99
 2450G  Button - Green                       2.99
 2450L  Button - w/Locking tabs - Red        3.99
 2450M  Button -
      center button for 3 button controls    3.99
 2450RS Rotary Switch                        5.99
 2450BP Universal bottom contact plate
                           -plate only       4.99
 PA5556 #4x1 1/4 Wood screw                2/1.99
 S218   Drive screw- bottom plate to case   2/.70
 2450S  Conical spring for control button    2.99

Other Instruction Sheets
 M2246  HO-268 Remote Control Switches       5.99
 M35214 HO-35214 Crossing Watchman           5.99
 M35210 HO-35210, 35209 Radar & Beacon       5.99
 M3914  HO-35702 Crossing Gate               5.99
 M3390  HO-3390 Re-Railer & Grade Crossing   5.99
 M35204 HO-35204 Flashing Crossing Signal    5.99
 M35212 HO-35212 Automatic Crossing Gate     5.99
 M3819  HO-Trestle Set                       5.99
 M35203 HO-35203 Trestle and Bridge Set      5.99
 M35250 HO-35250 Dutch Colonial House        5.99
 M35252 HO-35252 Cape Cod House              5.99
 M5153 HO-34720/34721 Remote Control Switche 5.99

CAR PARTS

OPERATING INSTRUCTIONS $2.99 ea.

M4925           33804 HO TNT Car
M5321           HO Mechanical Action Cars
 RFG #   AF #     DESCRIPTION              PRICE

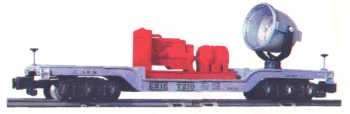

FLAT CARS See Example
 2300HO Side Stakes for HO flat car         4/8.99
 2307A  Lumber Load HO                     5/5.99
 2452   Bordens canister                     13.99
 2452A  Bordens style canister unlettered    8.99
 2462BC Baker's Chocolate canister           13.99

 2360HO  Rocket for HO rocket transport      7.50
 2360GHO Holder for HO rocket transport car  2.95
 2360G   Clip to hold rocket on flatcar      4.25

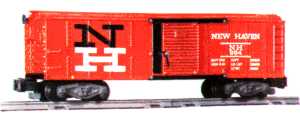

BOX - REEFER & STOCK CARS See Example

 2336   Plastic brakewheel -"S""HO"        4/3.99
 2337   Metal brakewheel                     2.99
 2338   Pin for 2337                       4/3.99
 2339HO Door-box car - HO                    3.50
ACTION CARS See Example
 2336   Plastic brakewheel box car "S""HO" 4/3.99
   TIE JECTOR
 2373A  Tie for "HO" tie-jector car        4/6.99
   HAY JECTOR
 2450   Hay Bales for "S" & "HO" -yellow   4/6.99
 2450A  Hay Bales for "S" & "HO" -Brown    4/6.99
PASSENGER CARS

 DE5A   Observation Taillite Lens
                             -"HO"-clear   2/1.50
 DE5AR  Odservation Tailite Lens- "HO"-red   1.99
FREIGHT WHEELS
 125D   P13A916 Plastic HO Wheel           4/4.99
Stickers with adhesive backing.
 ST2HO  Franklin - engine & tender HO    18.99 pr.
 ST6HO  N. P. Passenger car sides
                          - circle HO    13.99 pr.
 ST11HO B & O box car HO                 13.99 pr.
 ST12HO NYC box car HO                   13.99 pr.
 ST13HO Gulf tank car HO                 13.99 pr.
 ST14HO Bar reefer HO                   18.99 pr.
 ST16HO C & NW reefer sides HO           13.99 pr.
 ST23HO Koppers chemical car HO          13.99 pr.
 ST21HO M.P. F7 Nose Sticker             13.99 ea.
 ST24HO Seaboard box car HO              13.99 pr.
 ST28HO 3 dome Gulf tank HO              13.99 pr.
 ST30HO Hooker chemical HO               13.99 pr.
 ST41 Morrell reefer HO-white lettering  13.99 pr.

 ST41A Morrell reefer HO-yellow letters  13.99 pr.
 ST42   Riss Piggy Back sticker          13.99 ea.

 ST43   Pacific Fruit Growers HO         13.99 pr.

 ST44   Green Bay & Wester HO            13.99 pr.

 ST45   N. P. Refrgerator car HO         13.99 pr.

 ST46   N. P. F9 nose HO                 13.99 pr.

 ST53   B & O 421  HO                    13.99 ea.
 ST54   B & O 422  HO                    13.99 ea.
 ST55   B & O 31007  HO                  13.99 ea.
 ST56   B & O 31009 HO                   13.99 ea.
 ST57 Lackawanna 420 HO                  13.99 ea.
 ST58 D & H Canister HO                  13.99 pr.
 ST60HO Baker's Chocolate Lady HO         13.99 pr.

 ST61HO Pig Palace HO plaque             18.99 pr.

 ST62   S.P. Nose F7 HO                  13.99 ea.

MST1 Applying Stickers Instruction Sheet $1.99

Graphics are not to scale or actual appearence. Stickers require trimming.
